These Diode Dynamics Strips are priced PER EACH!
Features
- Proprietary durable phosphor coating, for uniform solid appearance
- Multi-function PWM drivers, fully waterproof, featuring low power, high power, and turn signal modes
- Extremely bright, high-density LEDs that are visible even in direct sunlight
- Integrated mounting tabs for easy installation
- Assembled in USA
Overview

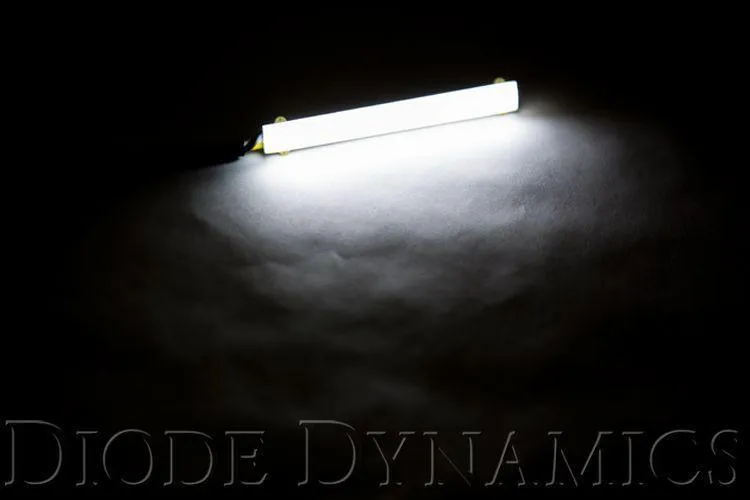

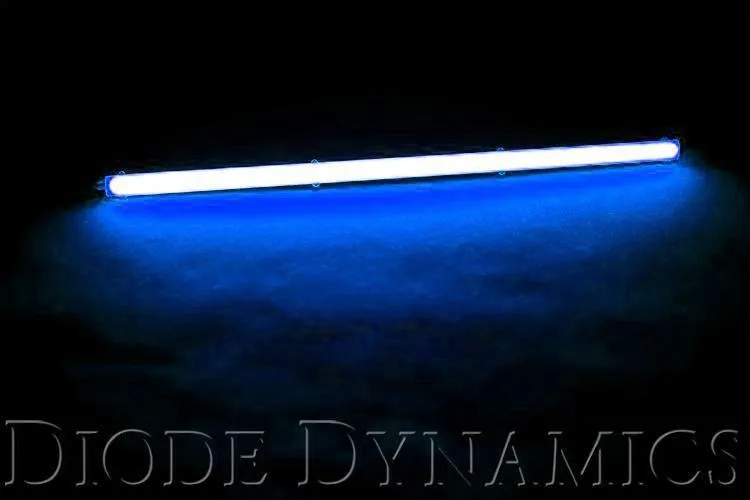

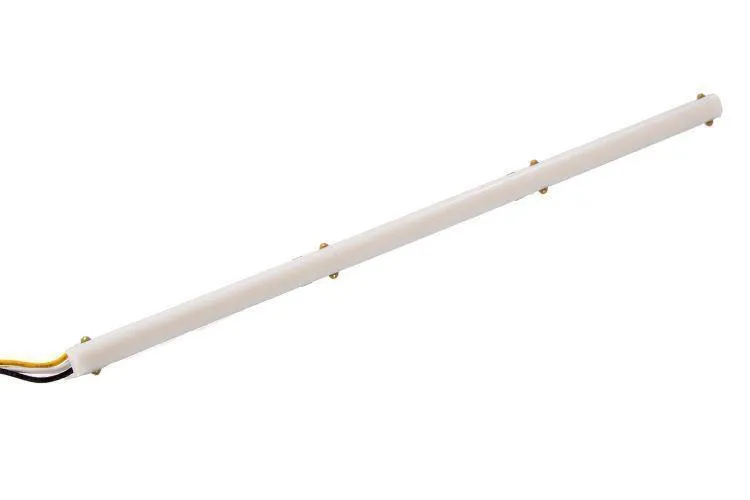

HDHalo Technology. These HD LED semi-flex strips have been designed from the ground-up to be absolutely the brightest, most reliable strips physically possible. Each strip is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.

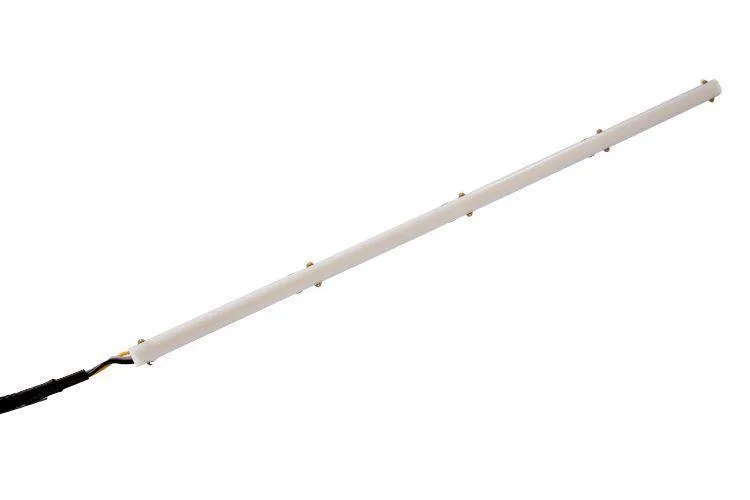

Sizing: All sizes are listed by total length, in millimeters. Strips can be shortened by up to 20%, but no less! Width is 8mm, and total height is 4.5mm.
Mounting: The strips must be custom-mounted in position using adhesive or beading wire using the integrated mounting tabs. If you wish, mounting tabs may be removed with a pair of clippers or basic sanding. The strips can be modified if needed to fit certain applications. Up to 20% of the strip can be removed using side-cutting snips and still remain fully functional.

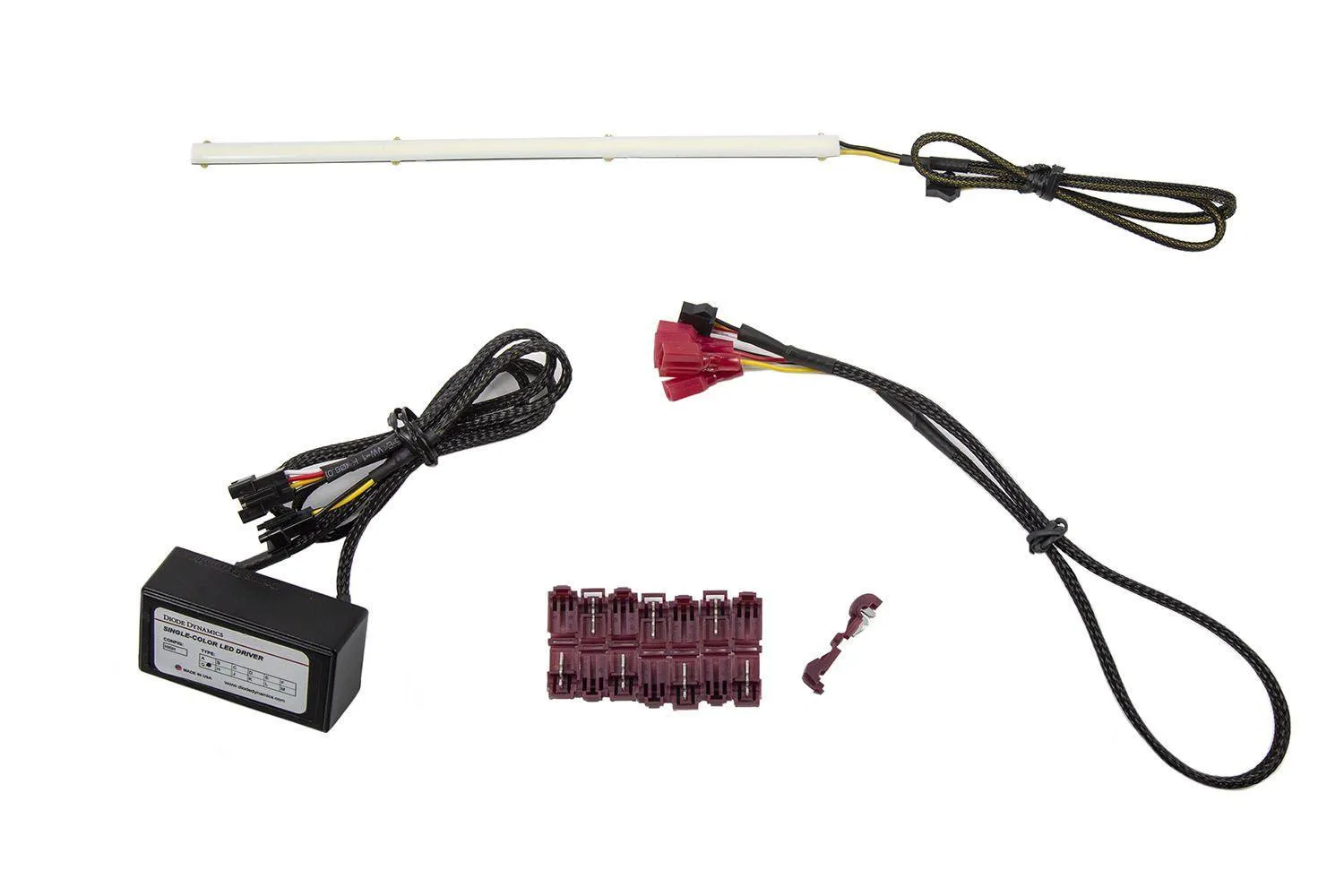

Wiring: All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.
PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these strips is the integrated multifunction PWM dimming control. The drivers have four wires, to be connected to any 12V signals as follows:
White: White Low Power, 50% brightness
Red: White High Power, 100% brightness

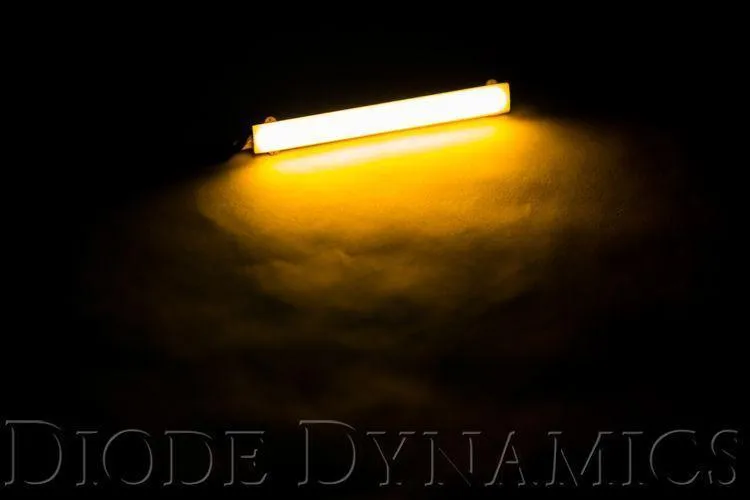

Yellow: Amber Signal, double brightness, flashing (dims if powered more than two seconds)
Black: Ground

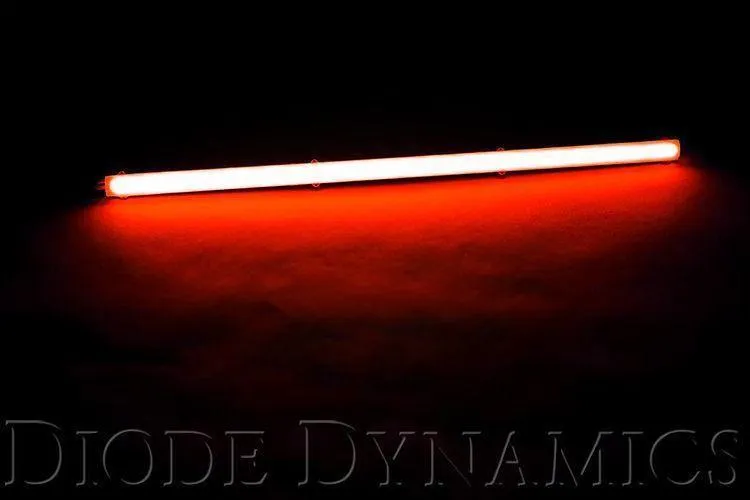

All input wires activate the halos, at different brightness levels. All red-colored halos ship with "high" priority drivers. This means that if both "low" and "high" power inputs are powered, the LED will light up with high power level. This is convenient for connecting the white wire to a running light, then connecting the red wire to a brake light. Then, if the yellow wire is powered, the halo will light up at 200% brightness momentarily, intended for signalling (dims automatically if powered for more than two seconds).
This entire setup allows you to connect the halo directly as a multifunction lamp, without any external controllers needed. Of course, this is completely optional. You can just use one or two of the input wires if you'd like.
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
