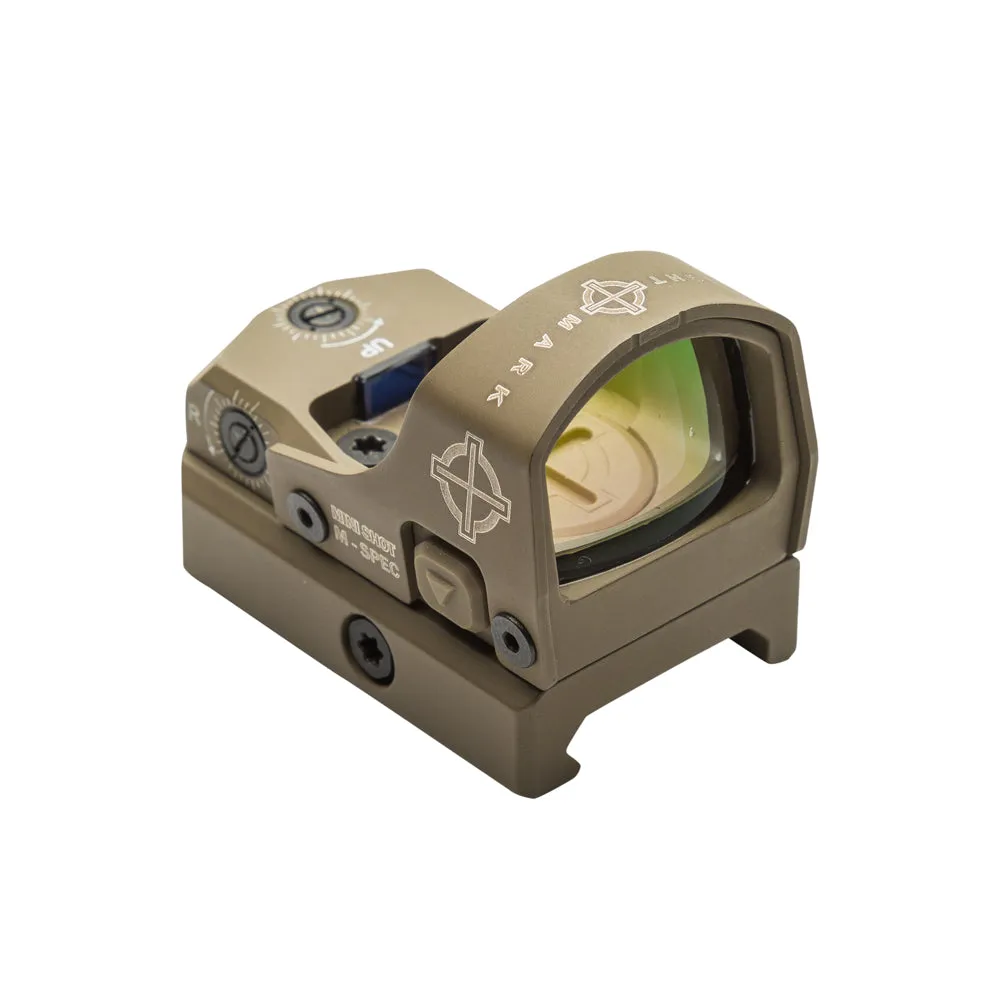

Built for law enforcement officers and professionals, the compact Mini Shot M-Spec LQD is the perfect reflex sight for competition shooting, hunting and LE applications on shotguns, pistols and AR’s. The kit includes a low profile QD mount for shotguns and pistols along with a riser QD mount for AR platform rifles. This rugged optic is 100% waterproof and features a durable aluminum housing with a steel protective shield. Doubling the battery life of the competition, the Mini Shot M-Spec’s extremely low power consumption provides 300-30,000 hours of battery life on one CR1632 battery, while its 12 hour auto shutoff prevents the unit from running out of batteries while you’re not using it. Easy 1 MOA windage and elevation click adjustments make zeroing this 3 MOA red dot reticle a breeze, even without any special tools. 10 brightness levels give shooters perfect reticle options from low light situations to the brightest days. An ambidextrous digital switch allows the M-Spec to be easily turned on and off by both left and right handed shooters.
Features
- Extremely low power consumption
- Windage and elevation click adjustments
- 10 reticle brightness levels
- 100% waterproof and dustproof
- Ambidextrous digital switch brightness controls
- Steel shield protective optics
- Advanced parallax free lends design
- Red reticle illumination
- Rugged lightweight aluminum alloy housing
- Scratch resistant lens coating
- 12-hour auto shut off
Specifcations
| Reticle, Type | 3 MOA |
|---|---|
| Reticle, Color | Red |
| Setting, Brightness | Off, 1-10 |
| Magnification | 1 x |
| Objective Lens | 21 x 15 mm |
| Eye Relief | Unlimited |
| Elevation Range of Adjustment | 110 MOA |
| Windage Range of Adjustment | 110 MOA |
| Adjustment Value | 1 MOA one click = |
| Parallax Setting | 25yd - ∞ |
| Finish/Color | Dark Earth |
| Body Material | 6061-T6 aluminum |
| Maximum Recoil | .375 H&H |
| IP Rating (waterproof) | IP67 - waterproof to 1m/3ft for 1 hour |
| Nitrogen Filled | Yes |
| Shockproof | yes, 3ft / .9m |
| Fog Proof | Yes |
| Lens Coating | AR Red |
| Mount Type | Weaver / Picatinny |
| Battery Type | CR1632 |
| Battery life, hours | 300 - 30,000 |
| Battery Voltage, V | 3 |
| Operating Temperature | -22 to 122 / -30 to 50 F / C |
| Length | 1.73 / 44 with low mount in / mm |
| Width | 1.14 / 29 with low mount in / mm |
| Height w/ low mount | 1.34 / 34 in / mm |
| Weight w/ low mount | 2.3 oz |
| Length w/ riser mount | 1.73 / 44 in / mm |
| Width w/ riser mount | 1.14 / 29 in / mm |
| Height w/ riser mount | 2.2 / 56 in / mm |
| Weight w/ riser mount | 3 oz |
Included in Package
- Rubber Cover
- Low Profile Fixed Mount
- AR riser QD mount
- CR1632 Battery
- Manual
Batteries Used
- Type: CR1632
- Quantity: 1
