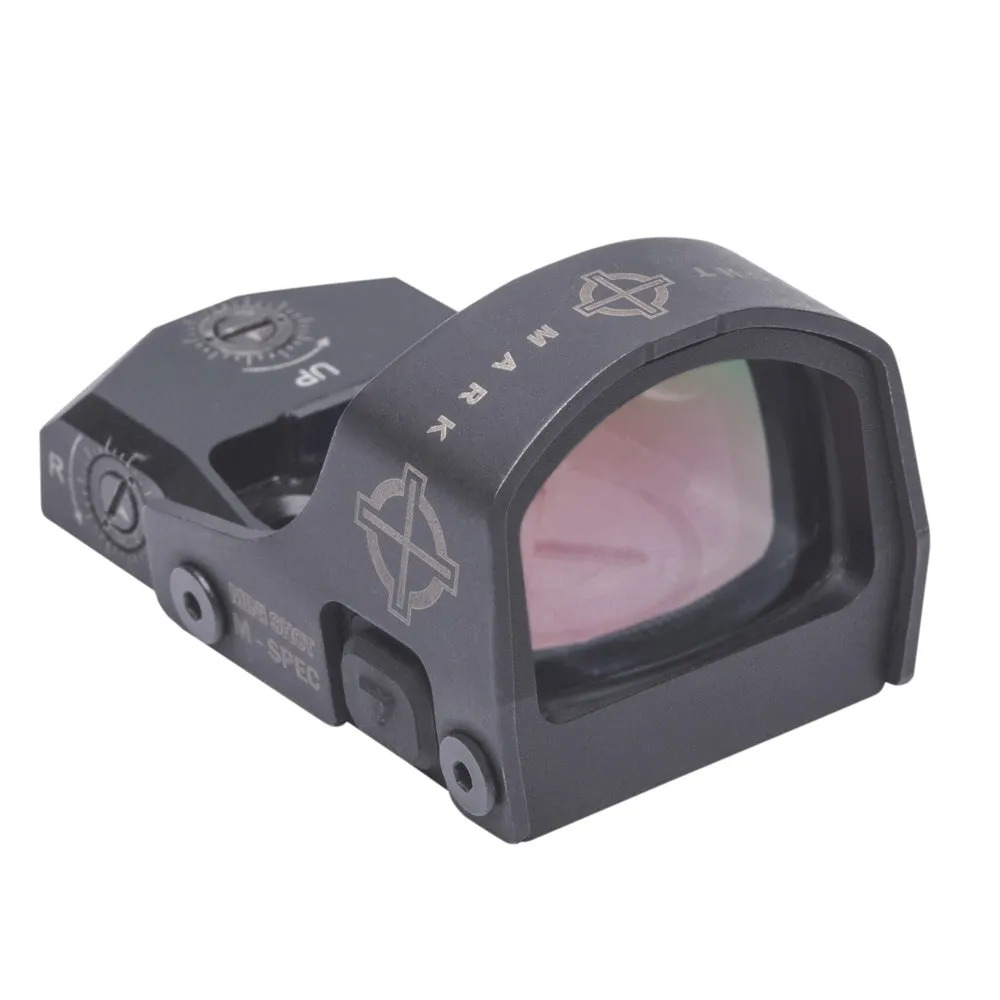

Built for law enforcement officers and professionals, the compact Mini Shot M-Spec Reflex Sight is the perfect optic for competition shooting, hunting and LE applications on shotguns, pistols and AR’s. The kit includes a low profile mount for shotguns and pistols along with a riser mount for AR platform rifles. This rugged optic is 100% waterproof and features a durable aluminum housing with a steel protective shield. Doubling the battery life of the competition, the Mini Shot M-Spec’s extremely low power consumption provides 300-30,000 hours of battery life on one CR1632 battery, while its 12 hour auto shutoff prevents the unit from running out of batteries while you’re not using it. Easy windage and elevation click adjustments make zeroing the 3 MOA red dot reticle a breeze, even without any special tools. 10 brightness levels give shooters perfect reticle options from low light situations to the brightest days. An ambidextrous digital switch allows the M-Spec to be easily turned on and off by both left and right handed shooters.
Features
- Very low power consumption
- Windage and elevation click adjustments
- 10 reticle brightness levels
- 100% waterproof and dustproof
- Ambidextrous digital switch brightness controls
- Steel shield protects optics
- Advanced parallax free lens design
- Red reticle illumination
- Rugged lightweight aluminum alloy housing
- Scratch resistant lens coating
- 12 hour auto shut off
Specifcations
| Reticle, Type | 3 MOA Dot |
|---|---|
| Reticle, Color | Red |
| Setting, Brightness | Off, 1-10 |
| Magnification | 1x |
| Diameter, Objective Lens | 21x15 mm |
| Eye Relief | Unlimited |
| Elevation Range of Adjustment | 110 MOA |
| Windage Range of Adjustment | 110 MOA |
| Adjustment Value | 1 MOA |
| Parallax Setting | 25yds |
| Finish/Color | Matte black |
| Body Material | 6061-T6 aluminum |
| Maximum Recoil | .375 H&H Caliber |
| IP Rating (waterproof) | IP67 - waterproof to 1m/3ft for 1 hour |
| Nitrogen Filled | Yes |
| Shockproof | Yes, 3ft / .9m |
| Fog Proof | Yes |
| Lens Coating | AR red |
| Mount Type | Weaver / Picatinny |
| Battery Type | CR1632 |
| Battery life, hours | 300-30,000 |
| Battery Voltage | 3 V |
| Operating temperature, F/C | -22 to 122 / -30 to 50 F/C |
| Length w/ low mount | 1.73 / 44 in/mm |
| Width w/ low mount | 1.14 / 29 in/mm |
| Height w/ low mount | 1.34 / 34 in/mm |
| Weight w/ low mount | 2.3 oz. |
| Width w/ riser mount | 1.14 / 29 in/mm |
| Length w/ riser mount | 1.73 / 44 in/mm |
| Height w/ riser mount | 2.2 / 56 in/mm |
| Weight | 3 oz. |
Included in Package
- Rubber Cover
- Low Profile Fixed Mount
- AR riser fixed mount
- CR1632 Battery
- Manual
Batteries Used
- Type: CR1632
- Quantity: 1
