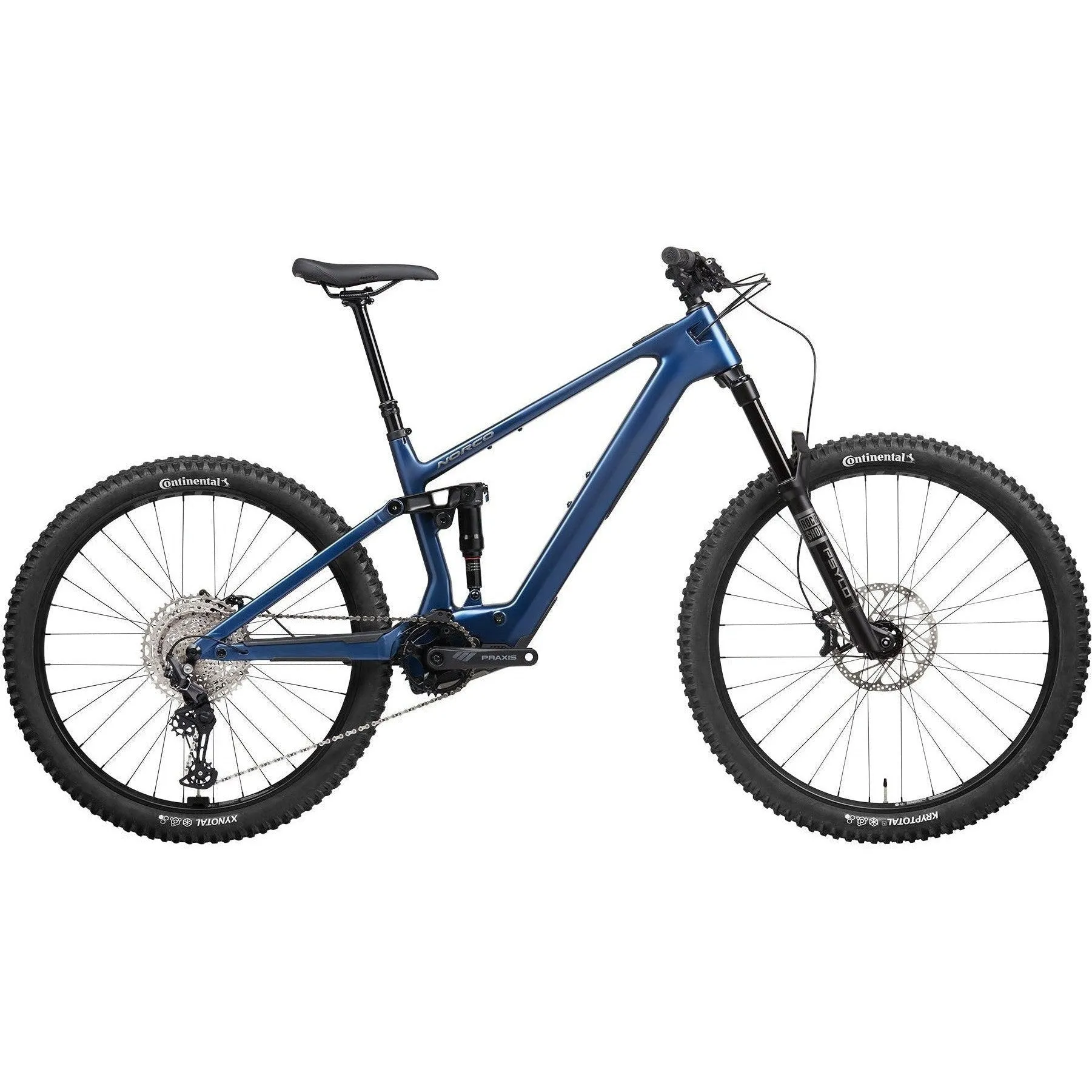

Get more rides in and make the most of every minute of the lightweight Fluid VLT C3 140. Featuring the next-level Bosch Performance Line SX drive system, and 140mm of precision-tuned suspension, integrating mixed wheels across all 5 frame sizes for optimum weight balance & handling.
With 140mm of custom-tuned, precision-engineered suspension travel and 150mm fork travel, the Fluid VLT C3 140 delivers an improved ride feel with the latest in integrated e-mtb technology from Bosch.
| FRAME | Fluid VLT Carbon Front Triangle, Alloy SS and CS, 27.5" Wheel, 140mm Travel, UDH, Hangerless Interface Compatible, Ride Aligned™ |
| FORK | RockShox Psylo Gold RC, 150mm Travel, 44mm Offset |
| REAR SHOCK | RockShox Deluxe Select , 185x55mm Trunion |
| REAR SHIFTER | Shimano Deore SL-M6100 |
| REAR DERAILLEUR | Shimano Deore RD-M6100 |
| CRANKSET | Praxis Alloy HD eMTB, 165mm |
| CASSETTE | Shimano Deore CS-M6100-12 11-51T, 12 Speed |
| CHAIN | KMC e12 |
| FRONT BRAKE | TRP Slate EVO, 4 Piston |
| FRONT BRAKE ROTOR | TRP TR203, 203mm, 2.3mm Thick |
| REAR BRAKE | TRP Slate EVO, 4 Piston |
| REAR BRAKE ROTOR | TRP TR180, 180mm, 2.3mm Thick |
| BRAKE LEVERS | TRP Slate EVO for Shimano I-Spec |
| HANDLEBAR | 6061 Butted Alloy, 800mm, 25mm Rise |
| STEM | 6061 Alloy 40mm Length, 35mm Clamp |
| SEATPOST | TranzX YSI34 Dropper, 125mm (S1), 150mm (S2), 170mm (S3), 200mm (S4, S5) |
| HEADSET | Sealed ZS |
| HEADSET SPACER | Carbon, 2x10mm, 1x5mm |
| SADDLE | WTB Volt Med |
| GRIPS | WTB Wavelength |
| FRONT HUB | Bear Pawls 110x15mm Boost, 6 Bolt |
| REAR HUB | Bear Pawls, 6 Pawl 3 Sealed Bearing, Steel Driver Body, 6-Bolt, Micro Spline |
| RIMS | WTB ST Tough 32H, 27.5" Rear, 29" Front, 30mm ID |
| FRONT TIRE | Continental Kryptotal 29" x 2.4" Trail |
| REAR TIRE | Continental Xynotal 27.5" x 2.4" Trail |
| DRIVE UNIT | Bosch Performance Line SX |
| BATTERY | Bosch CPT 400Wh |
| WEIGHT | 20.3 kg (44.7 lbs) |
| WEIGHT SIZE | S3 |
