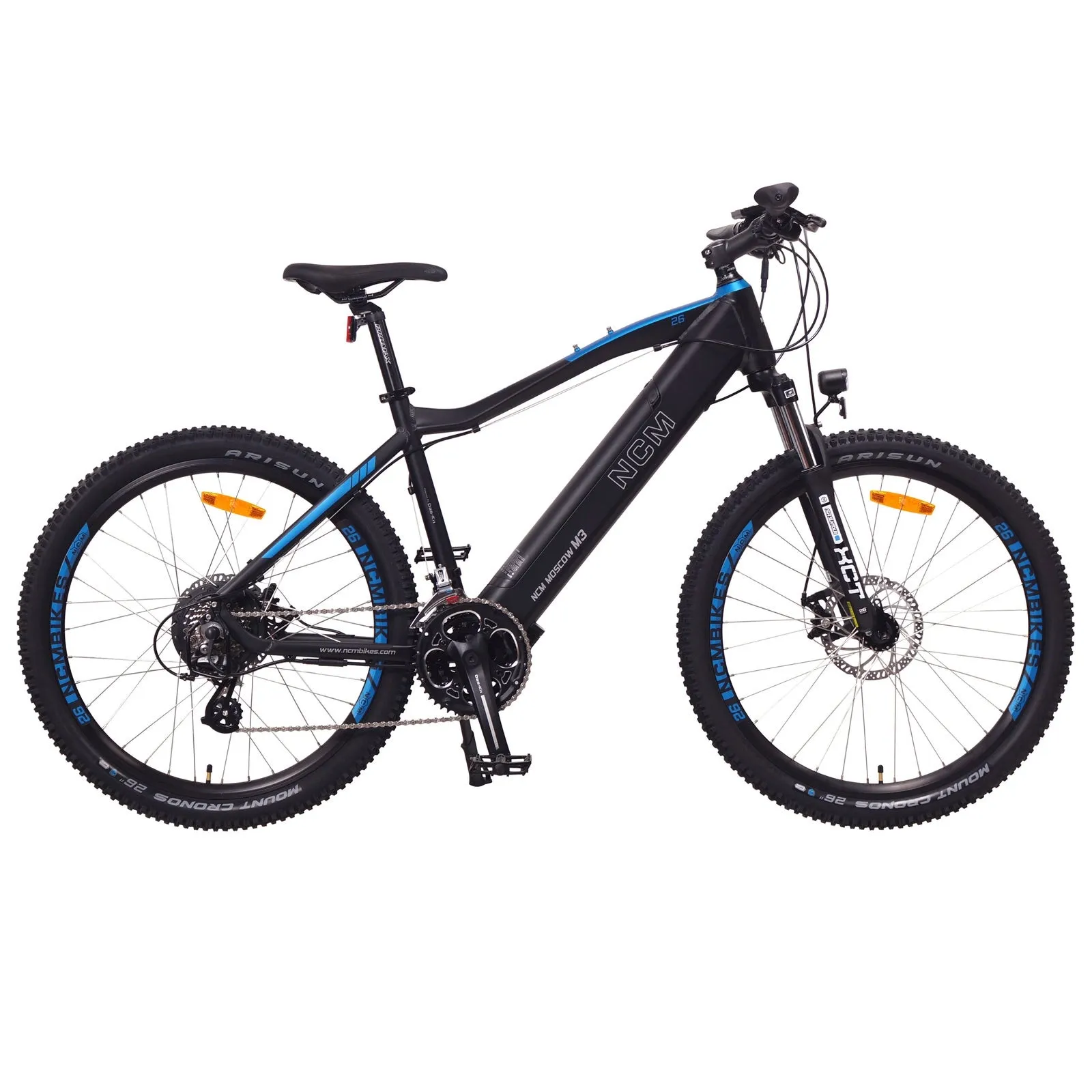

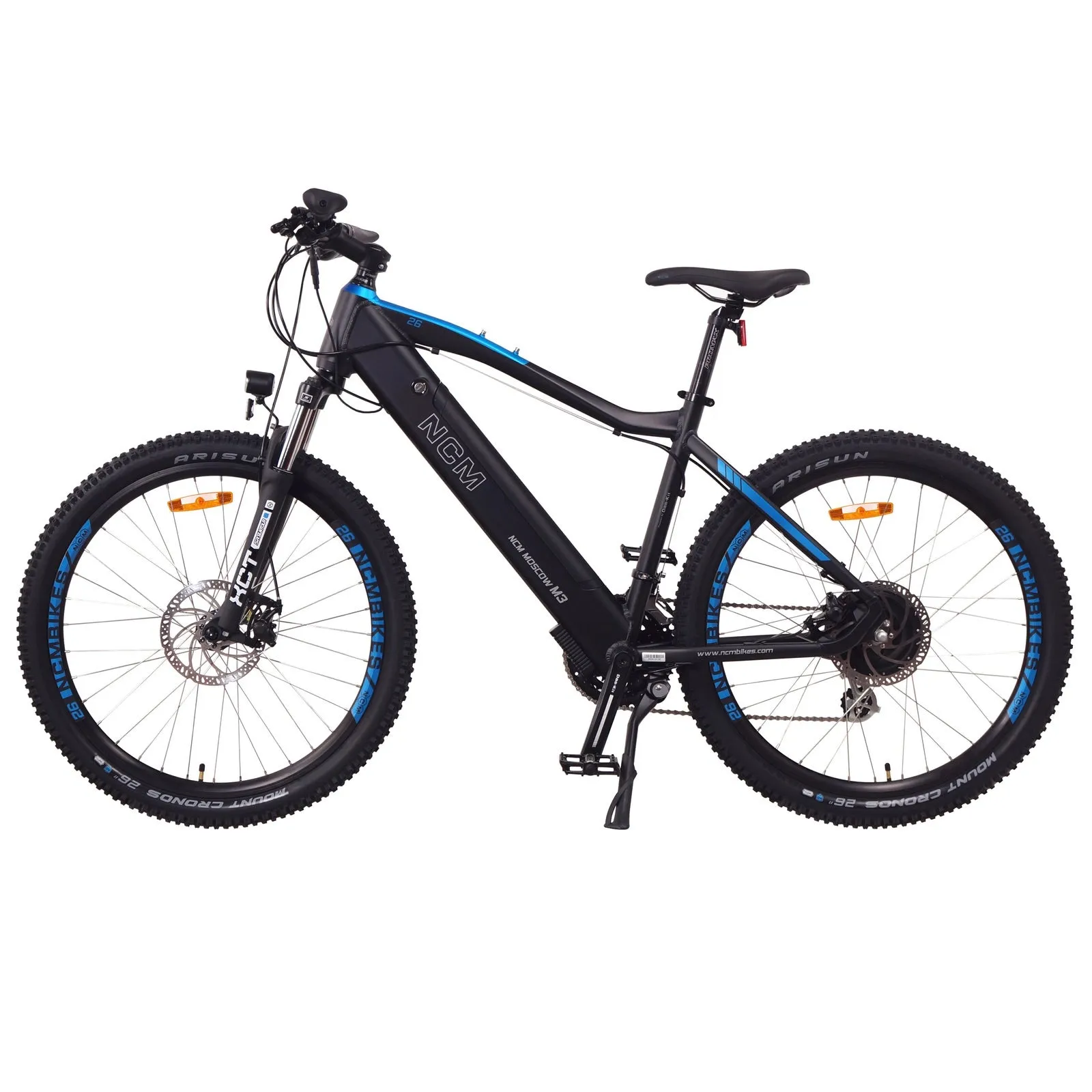

Name: NCM Moscow M3 Electric Mountain Bike, E-Bike, 300W, E-MTB, 48V 12Ah, 576Wh Battery
SKU: 799886

Introduction

Rugged and capable, the NCM Moscow plus is hugely versatile. Focusing on usability and capability, this E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, while makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.

Key Features

Ergonomic bicycle Grips
Comfortable sitting posture
All important controls easily accessible
Supplied with 48V to deliver a high output power
Over 768Wh capacity for a longer distance
Reach up to 150 km (depending on terrain conditions & power level settings)

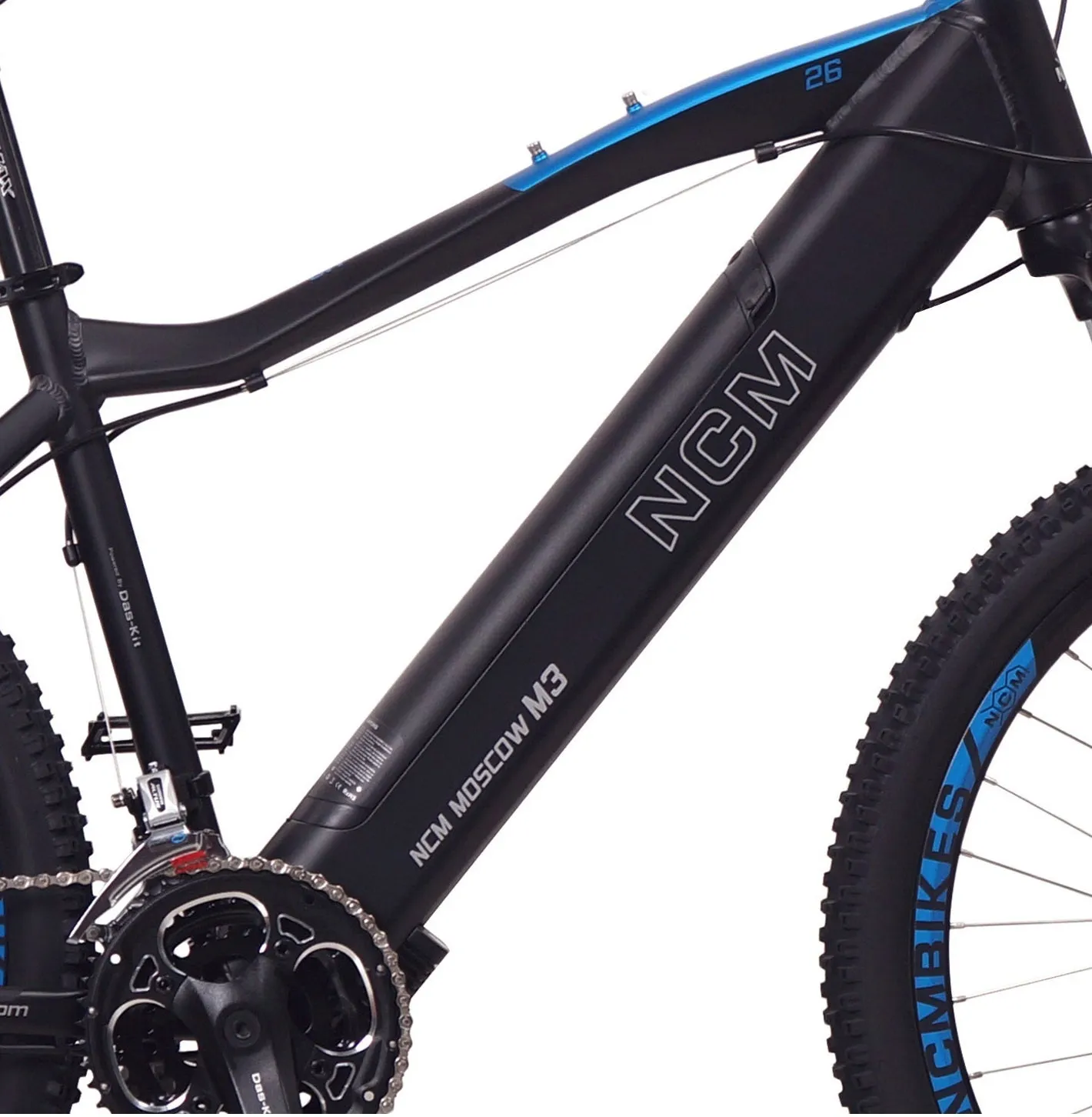

Battery integrated in the frame for better aesthetics
Easily removable battery so you can charge it anywhere
A built-in USB port with 5V to charge mobile phones
Equipped with Throttle and Pedal assist.

BIKE COMPONENTS

Frame: Alu. 6061, 26"*18.1 inches / 27.5"*18.9 inches / 29"*20.5 inches

Suspension Fork: Suntour, XCT

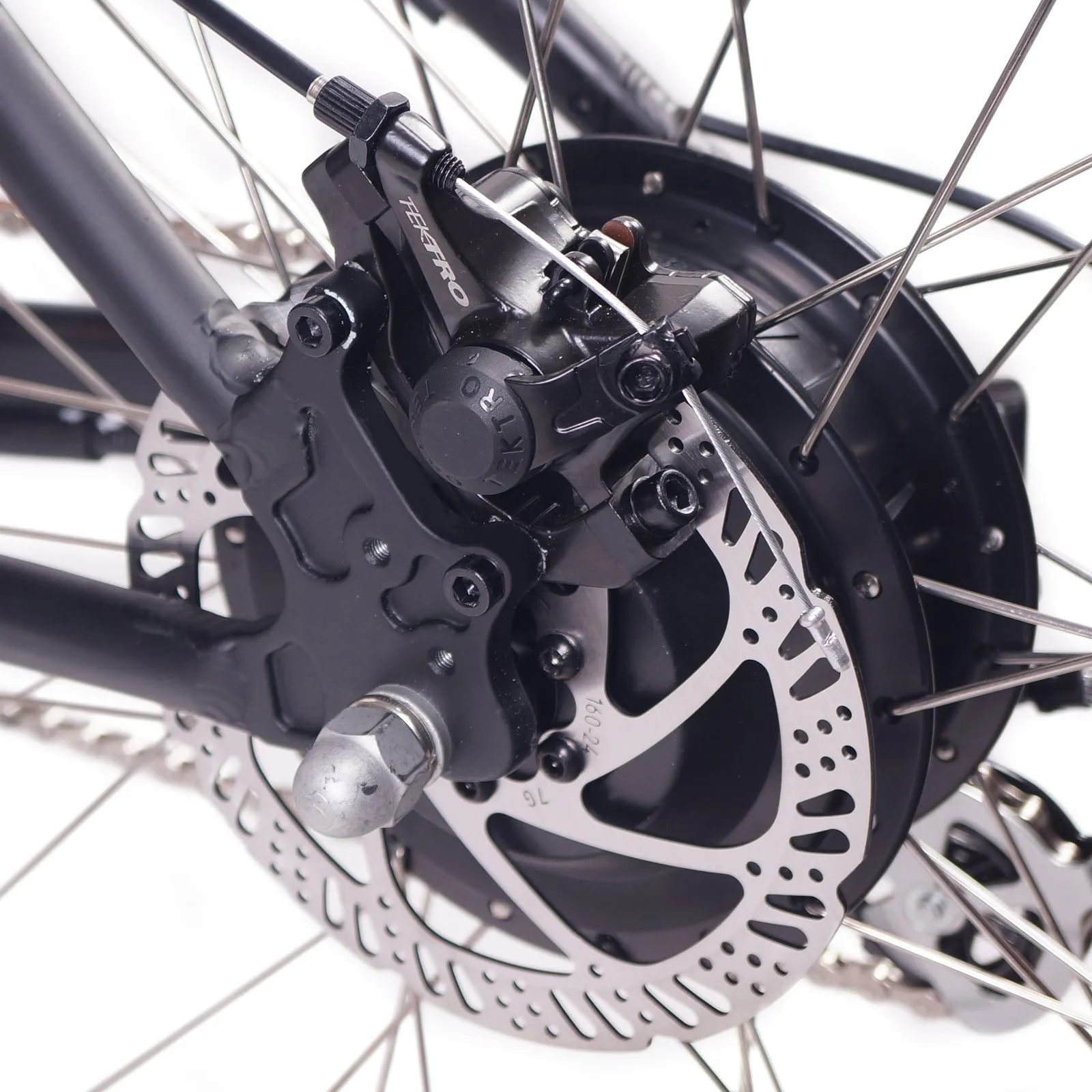

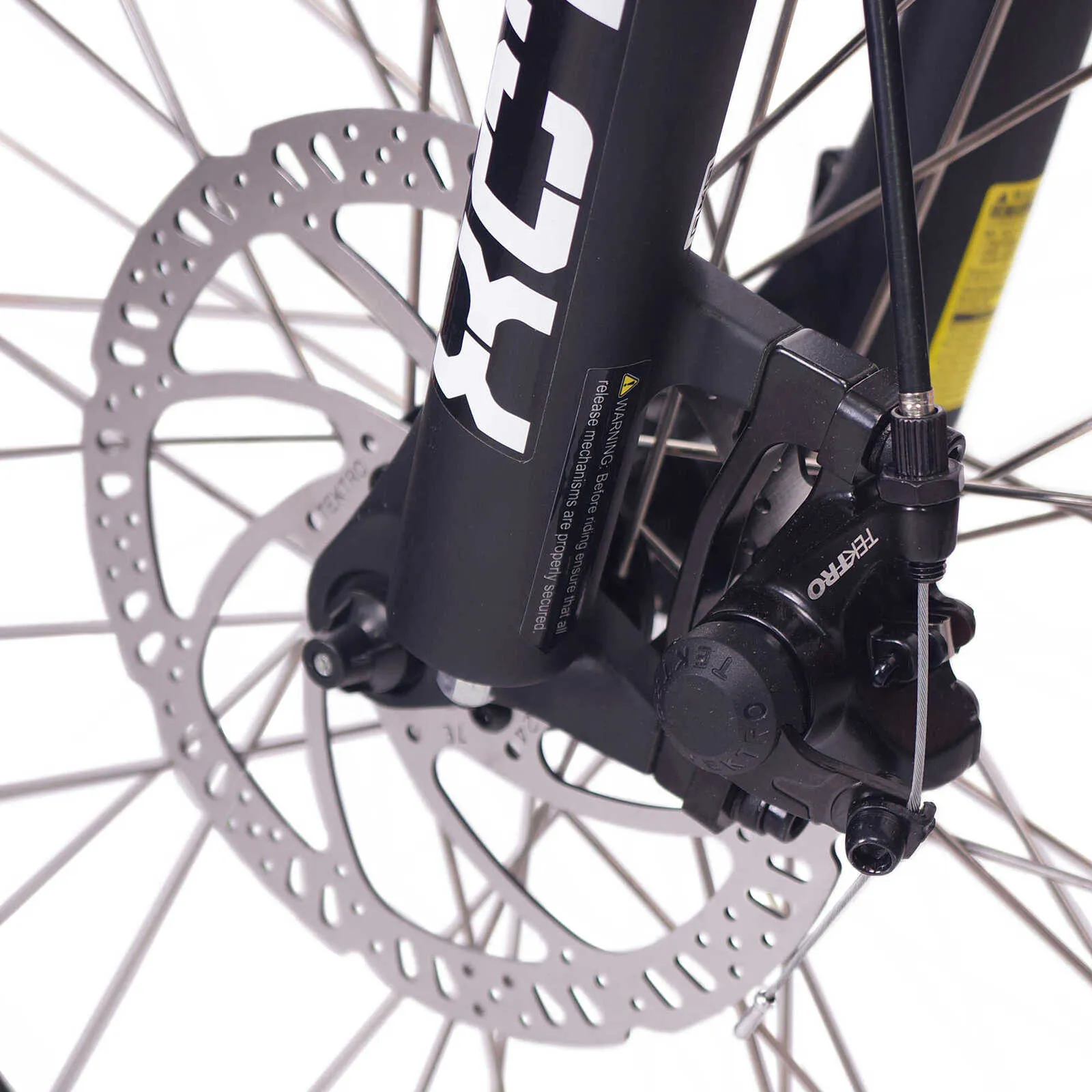

Brake: Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: Arisun Mount Cronos

Saddle: VELO, VL-3410

Stem: Promax, Alu.MA-471

Crank: DAS-KIT, CM48,28/38/48T

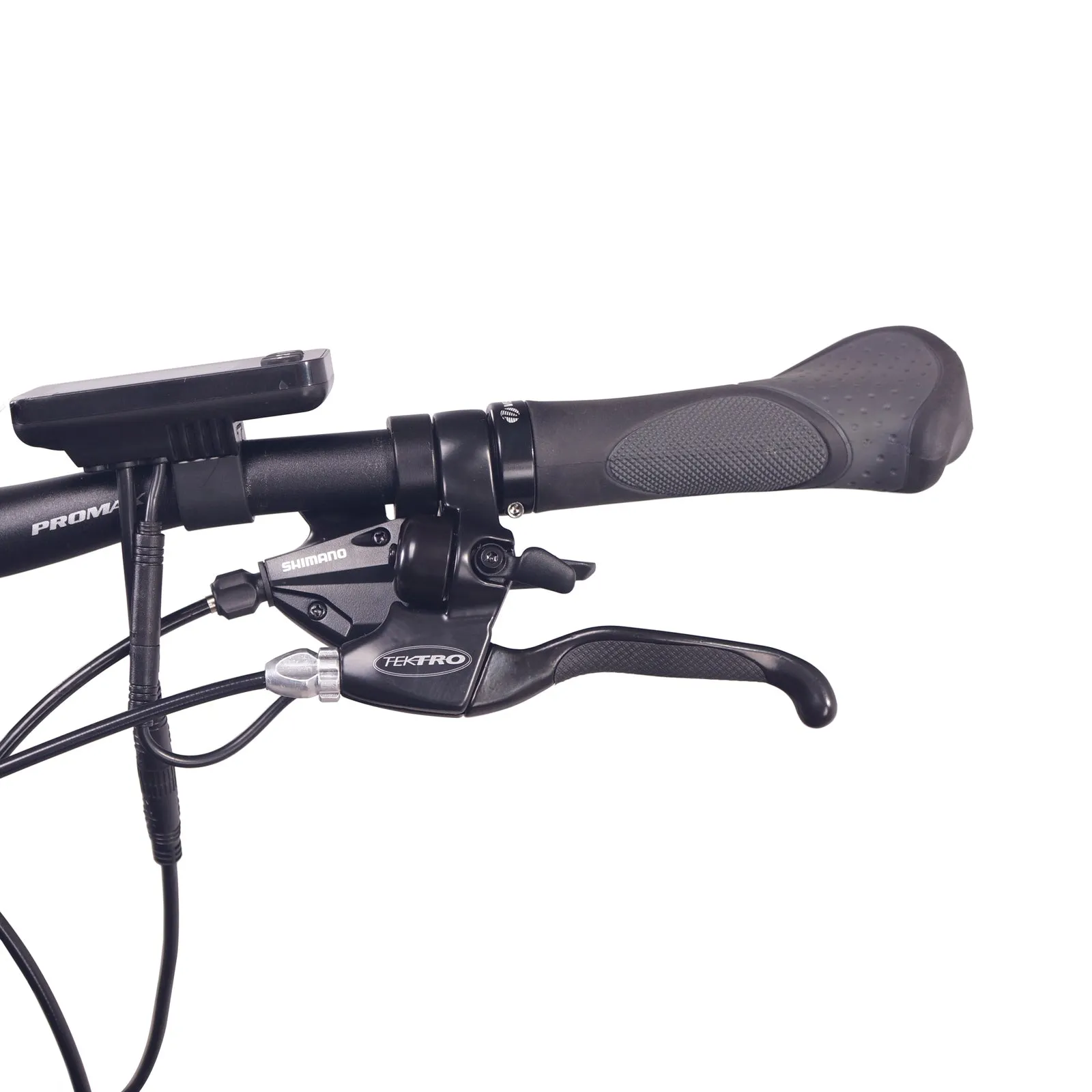

Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed

Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed

Front Derailleur: Shimano, Altus, FD-M313

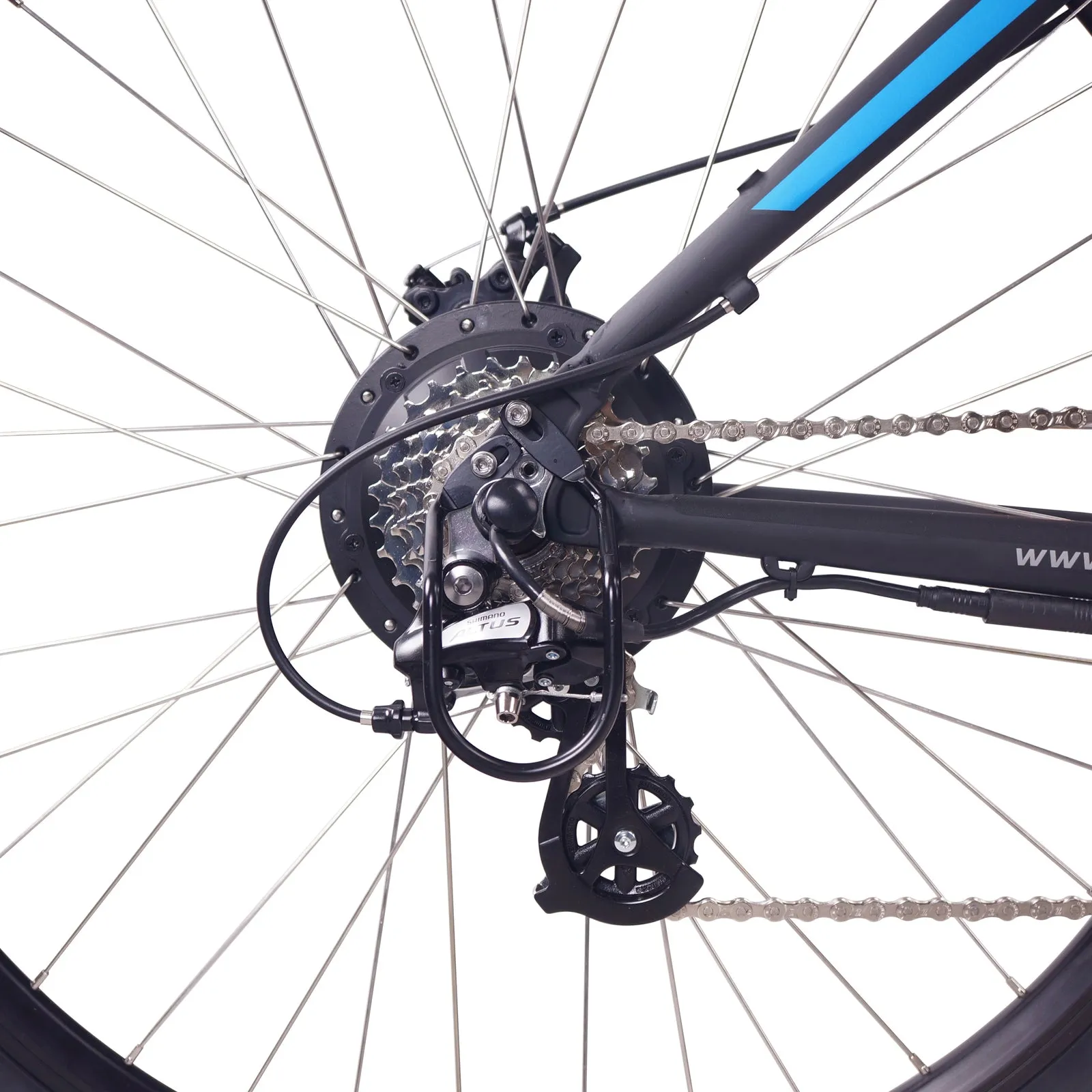

Rear Derailleur: Shimano, Altus, RD-M310

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

Hub Motor Rated / Peak Power: Das-Kit, X15, 48V 250wh

Controller: Das-Kit, CT5-i6, 48V 15A

Charger: Das-Kit, 48V2A

Display: Das-Kit, L7

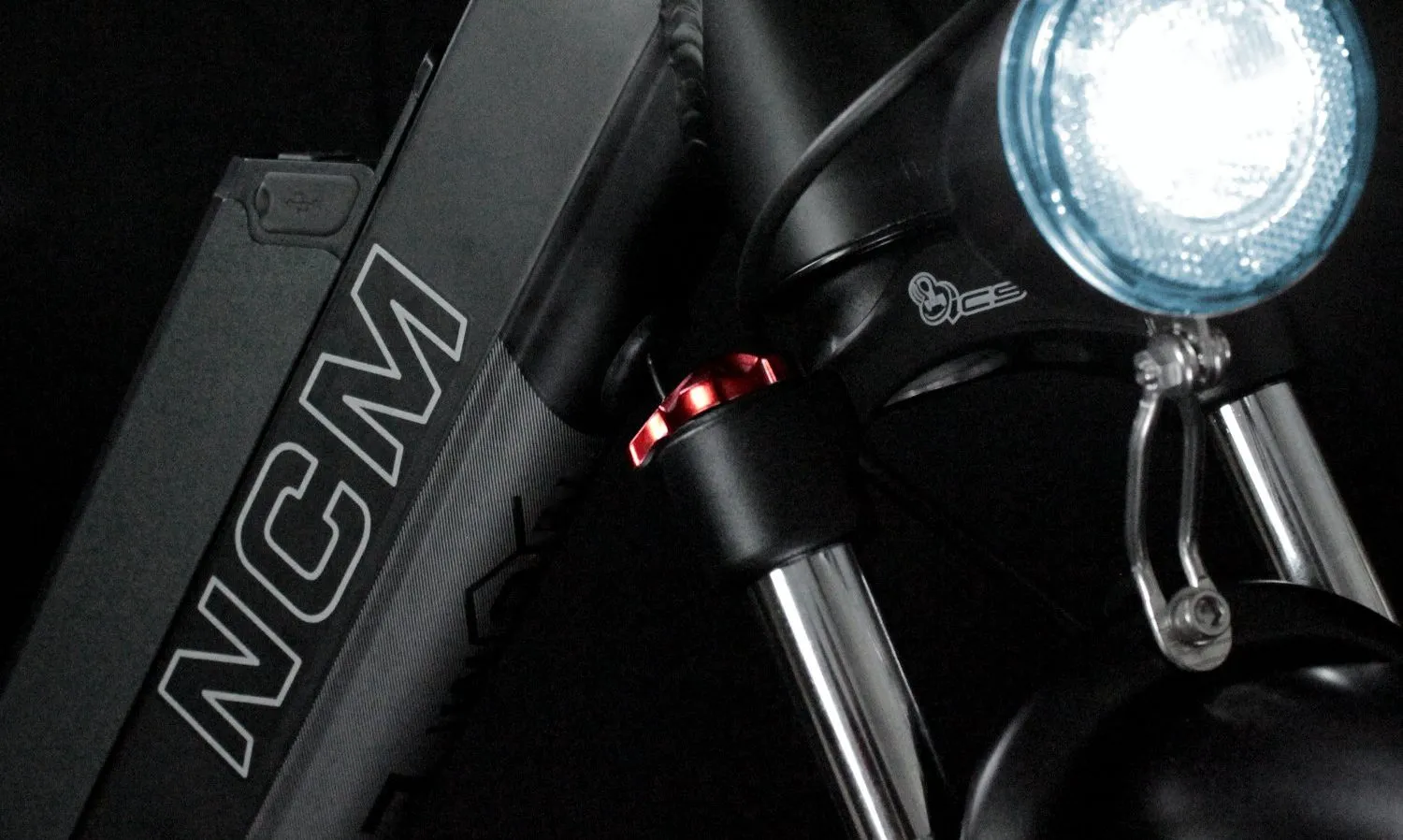

Front Light: DH002, 48V, 40 Lux

WEIGHT

Net Weight (with battery): 57.0 lbs

Battery Weight: 7.5 lbs

Max Load (driver bike): 275.0 lbs

Warranty

1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
2 year warranty on the bike frame
Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.
